Tanker generally consists of tank body, frame, axle, air suspension, piping system, electrical system, support device, auxiliary braking system (ABS), safety accessories and other parts. The fuel tank car also needs to be equipped with a special chassis for dangerous goods, and all safety accessories such as side guardrails, tail guardrails, tank top movable guardrails, tank top enclosures, piping boxes, accessory boxes, fenders, fire extinguisher boxes, etc. Aluminum alloy material. Among them, the 5083 tank car aluminum plate is very popular with customers. The following mainly introduces the 5083 alloy used in the tank car industry.
5083 aluminum plate

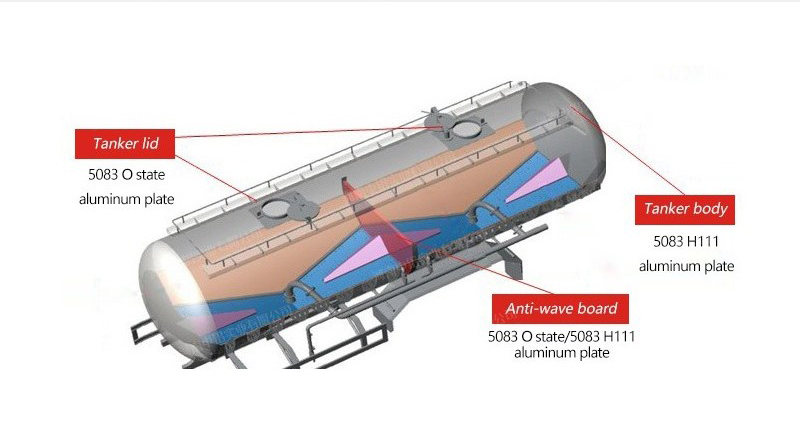

The tank body of the Tanker adopts a nearly circular section and is composed of a tank body, a head, a baffle, a wave breaker and other components. The thickness of the tank body is 6mm, the head and baffle are 7mm, and the anti-wave plate is 6mm.
5083 aluminum plate shall be used for tank car
5083 aluminum plate for tanker plays an important role in the transportation of refined oil
- The cost savings is obvious: the single-vehicle benefit is significantly improved. The 5083 aluminum plate for tanker has an increase of 7 tons compared with the carbon steel structure tanker. The 5083 aluminum alloy tanker has the same freight rate and transportation distance. Steel structure tanker.
- The operating cost is effectively reduced: In the long run, the maintenance cost of the 5083 aluminum alloy tank body is reduced because it does not require post-corrosion painting. Others (tire fees, road and bridge fees, labor costs) did not change much.
- The safety and environmental protection performance of the equipment itself is outstanding: the aluminum alloy fuel tanker has a low center of gravity due to the light weight of the upper body, and it is not easy to roll over, which enhances driving safety; the aluminum alloy material has good electrical conductivity, and static electricity is not easy to accumulate, reducing the number of vehicles. the possibility of a flash explosion accident;
- 5083 aluminum sheet prolongs the service life of tank trucks: aluminum alloy has good corrosion resistance, and can form a dense aluminum oxide covering layer on its surface to prevent the erosion of atmosphere and moisture. After rubbing, the surface will automatically regenerate the oxide film to ensure the service life of the vehicle;
- The 5083 alloy can be recycled: since the aluminum alloy does not corrode, it eliminates the possibility that the bottom of the oil will contain water and react with the tank to contaminate the oil; the environmental protection performance of the aluminum alloy is good, and the aluminum alloy can be recycled. When alloy scrap replaces virgin metal, the recycling rate can reach 95%.
Tanker aluminum plate
Common aluminum alloys for Tanker aluminum plate include 5000 series magnesium aluminum alloy and 6000 series aluminum magnesium silicon alloy.
5000 series magnesium-aluminum alloys are mainly used as tank materials.
Common alloys: 5082/5052/5754/5454/5182
Application part: aluminum alloy tank car body, hoarding, wave plate, tank mouth, etc. and maintenance costs.
Tanker aluminum plate for sale
6000 series aluminum-magnesium-silicon alloys are often used for other accessories and frames, such as frame diagonal supports, longitudinal beams, and cross beams. Among them, the 6082 aluminum plate is used in the tank car protective plate. The 6082 aluminum plate is used for the tank car protective plate. It has good ductility, high strength, and good compatibility with gasoline and diesel. It can avoid high-quality pollution, and can not do anti-corrosion. Even if the car body is scratched, it will not rust, the appearance brightness remains relatively long, and it is easy to clean.
5083 aluminum plate factory
The manufacture of Tanker aluminum plate requires scientific process flow, reasonable process arrangement and strong equipment processing capability to ensure the manufacture of high-quality products. Henan Chalco aluminum specializes in the production of aluminum plates for tank trucks, with high surface cleanliness, good shape, no oil stains, bright lines and other sundries, high product elongation, complete large-scale production equipment, high technical level, exquisite craftsmanship, and rich processing experience. And the products are all direct ex-factory prices, which are very favorable compared to other merchants. If you want to know more product details and preferential quotations, you can click to consult Email: info@chalcoaluminum.com, and professionals will answer your questions in detail!
